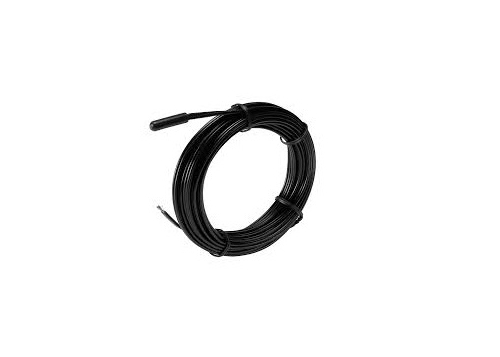

    Electric Underfloor Heating Floor Micro Temperature Sensor Probe 5x17mm 15KOhm 3470 With IP68 Rated Waterproof


    Electric Underfloor Heating Floor Micro Temperature Sensor Probe 5x17mm 15KOhm 3470 With IP68 Rated Waterproof


    Dimension (Unit:mm)


    Dimension
    ABCDL
    51725±53±1as required

    Material List


    NOMaterial NameMaterial and Specifications
    2-1.ElementR25=15KΩ±1% B25/50=3470K±1% DC
    2-2.CoatingNTC encapsulated using PVC over-mold material (Black)
    2-3Cable featuresCustomization 2464-22#*2C Black hard round sheath wire (OD3.3)
    2-4.Wire ends

    Tinned


    Important Note


    This sensor has a resistance of 15,000 Ohms at 25ºC. Therefore it is not compatible with certain brands of underfloor heating thermostats such as Devi which have a resistance reading of 10k Ohms at 25°C. Please contact us if you are unsure or have any questions regarding this sensor.We have both type : 10k Ohms at 25°C and 15,000 Ohms at 25ºC.


    ______________________________________________________________________________Epoxy Coated Photocell 11mm Diameter Photoresistor Light Sensor GM11528 With Light Resistance 10-20 KOhm Download________


    Description


    All Comfort Heat thermostats include a floor sensor maintaining consistent floor temperature. Floor sensing thermostats are the safest and most energy efficient floor heating regulators ensuring the floor does not overheated, and kept at the desired temperature.

    Replacement floor temperature sensor suitable for a wide range of underfloor heating thermostats.

    An electric underfloor heating remote probe used to control floor or air temperature where moisture might be a problem (For example in a wet room or bathroom.) The sensor can also be used to control floor temperature where overheating would cause damage. The underfloor heating probe is compatible with all of our electric floor heating thermostats.

    The remote probe sensor is supplied with 3 meters of cable as standard but can be extended up to a maximum of 20 meters if required. The ability to extend the underfloor heating probe provides a highly flexible solutions should you wish to install the underfloor heating thermostat in a remote location. The probe is covered in a flexible PPC coating ensuring a durable and waterproof finish.


    Electrical Performances
    NOItemSignTest ConditionsMin.Nor.Max.Unit
    1.Resistance at 25℃R25

    Ta=25±0.05℃

    PT≦0.1mw

    14.8515.015.15
    2.B ValueB25/503435.334703504.7k
    3.Dissipation factorσIn still airAbout 2mW/℃
    4.Time responseτIn flowing waterAbout 15sec
    5.Withstanding Voltage/1500VAC 2SecNo breakdownSec
    6.Insulation Resistance500VDC≧100
    7.Operating temp. range//-30/+105

    Features


    Works with a wide range of different thermostats
    Please check the resistance values of your current sensor against the table below for compatibility
    Cable has high rigidity, allowing it to be easily passed through existing flexible conduit
    Suitable for use in wet areas. IP68 Rated (When installed according to manufacturers instructions)
    Rubber thermoplastic protective housing for NTC sensor
    Sensor dimensions; 17mm x 5mm

    Works with a wide range of different thermostats. Please check the resistance values of your current sensor against the table (Shown on pictures.)
    Cable length can be customized(Extendable upto 20 meters)
    Suitable for use in wet areas - IP68 (When installed according to manufacturers instructions)
    No polarity, simply connect the two wires either way round to the sensor outlet on the thermostat.

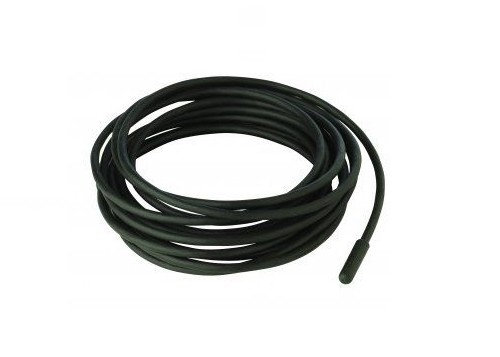

    Electric Underfloor Heating Remote Probe Floor Sensor

    Used as Air or Floor Sensor

    Waterproof

    5mm Probe Diameter


    Installation Recommendations

    :
    When installing the EcoHeatCool underfloor heating remote probe into any form of screed or solid floor construction we recommend you run the thermostat into a sleeve (tube) within the floor should the thermostat need to be replaced at a later date.


    To extend the underfloor heating probe use an equivalent gauge electrical cable ( Note: The maximum distance from the thermostat should be no more than 20 meters.)


    Mark the position of the conduit on the floor. Remove the surrounding heatmat(s) and cut a channel 12mm wide x 8mm deep in the floor to accommodate the conduit. This will maintain the overall finished floor level. Ensure that the floor is clean before installation of heatmat(s)


    SENSOR LOCATION


    The sensor end should be located in the floor between the heating cables/pipes so it measures the typical floor temperature. The sensor tube should not pass over or under the heating cable.


    SENSOR TUBE


    All Comfort Heat sensors installed in-slab, in-screed or thin mats are installed in a sensor tube. (12mm plastic tube with capped end) This allows the sensor to be removed if required, without lifting floor tiles.

    Under-carpet and under timber systems do not require a sensor tube.


    Sensor Testing


    Using a multi-meter, measure the resistance between the two connection wires in the floor temperature sensor flex, and check against the Thermostat Kit Installation / Operation Guide supplied with the thermostat. Check the resistance before and after installation.


    Where do the RCD/Timer/Thermostat go on the circuit ?
    The mat is laid and the cold leads are fed into a junction box. It doesn't matter where you physically fix these items, though you may want them to be hidden in a cupboard. If you have a thermostat that reads air temperature, this will need to be in the appropriate room. However, if it is fitted with a floor sensor then this isn't necessary.

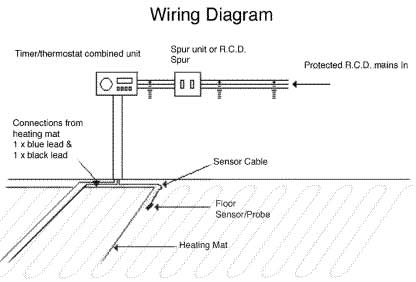

    Wiring Diagram Example:’

    HOW DOES THE FLOOR SENSOR DETECT THE TEMPERATURE FOR ELECTRIC UNDERFLOOR HEATING?


    The most efficient way of running and controlling Electric Underfloor Heating is by using a controller that has a floor sensor attached that is located in the floor in between the heating cables. The floor sensor should be located inside a hollow conduit pipe that runs down the back of the wall and into the floor construction, this means the sensor can be protected from the screed or adhesive so no damage is caused but also can easily be pulled out and new one fed back if necessary at a later date.

    The sensor cable is signal/bell wire and has a probe at the end of the sensor that detects the temperature. By being located next top the heating cable the temperature is more reactive and less influenced by the changes in Ambient temperature meaning the system will constantly adjust itself without the need for being on for extended periods of time.

    Although the controller on the wall can be switched to read the Ambient temperature, it is not Touch Underfloor Heatings preferred option as it can be easily influenced by draughts, sunlight, high temperatures etc meaning your Underfloor Heating system will either run constantly or not at all. Tocuh Underfloor Heating provised the 10mm conduit pipe as part of the Kit.

    More thermostat help can be found here.


    Reliability Test


    NOItemTechnical requirementsTest conditions and method
    1.Dry heat storage

    △R25: R25≤±3%

    △B25/85: B25/85≤±2%

    80±2℃,Room temperature storage 1000H.
    2.Warm storage55±2℃,95% RH, Room temperature storage 1000H.
    3.Low temperature storage-30±2℃, Room temperature storage 1000H.
    4.Temp. cycle test-20℃×30min → 25℃×10min →100℃ Water×30min → 25℃×10min, total 10 cycles
    5Lead wire pulling testNo visible damage, and are within specificationFix the product and apply 9.8Nor 1.0kg force on axial direction of each lead wire, for 10 secs.
    6Lead wire bending testFix the product and apply 100g force on axial direction of each lead wire, then bend both lead wires to same direction slowly, before bending them back to original location, for 10 times
    7Welding abilityTin covered area should be larger than 90%Soak lead wires with flux, immerse into flux at 230-260, for 3 to 5 secs.

    Resistance Vs. Temperature Table


    R-T CONVERSION TABLE
    R25=15KΩ±1% B25/50=3470K±1%
    T/℃RminRcenRmaxT/℃RminRcenRmax
    -55765.738804.9845.979-20106.488109.725113.05
    -54712.99748.914786.569-19101.264104.29107.395
    -53665.938699.009733.648-1896.32999.157102.058
    -52623.575654.108686.067-1791.66594.30997.02
    -51585.122613.377642.932-1687.25789.72992.262
    -50549.967576.164603.548-1583.08985.40187.768
    -49517.631541.956567.367-1479.14681.30983.522
    -48487.733510.346533.954-1375.41677.43979.508
    -47459.969481.01502.963-1271.88673.77875.713
    -46434.092453.684474.113-1168.54470.31472.123
    -45409.905428.157447.177-1065.37867.03568.726
    -44387.243404.254421.969-962.37963.92965.511
    -43365.97381.829398.334-859.53660.98762.467
    -42345.973360.76376.141-756.84158.19959.583
    -41327.154340.943355.279-654.28455.55556.85
    -40309.428322.29335.652-551.85953.04854.26
    -39292.723304.719317.175-449.55650.6751.804
    -38276.973288.163299.774-347.37148.41349.473
    -37262.119272.557283.382-245.29446.2747.262
    -36248.108257.845267.937-143.32144.23545.163
    -35234.891243.974253.383041.31442.16543.029
    -34222.422230.896239.668139.66340.46341.276
    -33210.659218.565226.744237.96738.71639.476
    -32199.562206.938214.565336.35437.05537.765
    -31189.093195.975203.088434.81835.47436.138
    -30179.217185.64192.273533.35633.96934.591
    -29169.901175.894182.081631.96332.53733.118
    -28161.112166.706172.477730.63731.17431.716
    -27152.821158.043163.427829.37329.87430.382
    -26144.998149.873154.897928.16828.63729.111
    -25137.618142.17146.8571027.01927.45727.9
    -24130.653134.904139.2791125.92326.33226.746
    -23124.08128.05132.1341224.87725.2625.646
    -22117.876121.584125.3971323.87924.23724.597
    -21112.019115.483119.0431422.92723.2623.596
    R-T CONVERSION TABLE
    R25=15KΩ±1% B25/50=3470K±1%
    T/℃RminRcenRmaxT/℃RminRcenRmax
    1522.01722.32922.642525.5895.75.813
    1621.14921.43921.731535.4045.5135.624
    1720.31920.5920.861545.2265.3345.443
    1819.52619.77820.031555.0555.1615.268
    1918.76919.00319.239564.894.9945.1
    2018.04418.26318.482574.7324.8344.938
    2117.35217.55517.758584.5794.684.782
    2216.68916.87817.067594.4324.5314.631
    2316.05616.23116.406604.2914.3884.486
    2415.44915.61215.774614.1544.2494.346
    2514.851515.15624.0234.1164.212
    2614.30314.45314.602633.8963.9884.082
    2713.76113.9114.06643.7743.8643.956
    2813.24213.39113.54653.6563.7453.835
    2912.74512.89413.042663.5433.633.718
    3012.2712.41712.565673.4333.5193.606
    3111.81511.96112.108683.3283.4123.497
    3211.37911.52411.67693.2263.3083.392
    3310.96111.10511.25703.1283.2083.291
    3410.56110.70410.847713.0333.1123.193
    3510.17810.31910.461722.9413.0193.098
    369.819.9510.091732.8532.9293.007
    379.4579.5969.735742.7672.8422.919
    389.1199.2569.394752.6852.7592.834
    398.7958.939.066762.6052.6782.751
    408.4848.6188.752772.5292.5992.672
    418.1868.3178.45782.4542.5242.595
    427.8998.0298.16792.3832.4512.52
    437.6247.7527.882802.3132.382.448
    447.367.4867.614812.2462.3122.379
    457.1077.2317.357822.1812.2462.312
    466.8636.9867.11832.1192.1822.247
    476.6296.756.872842.0582.122.184
    486.4046.5236.6438522.0612.123
    496.1886.3056.424861.9432.0032.064
    505.986.0966.212871.8881.9472.007
    515.7815.8946.009881.8361.8931.952
    R-T CONVERSION TABLE
    R25=15KΩ±1% B25/50=3470K±1%
    T/℃RminRcenRmaxT/℃RminRcenRmax
    881.8361.8931.9521110.9971.0351.073
    891.7841.8411.8981120.9731.011.048
    901.7351.791.8471130.950.9861.024
    911.6871.7411.7971140.9280.9631
    921.6411.6941.7481150.9060.9410.977
    931.5961.6481.7021160.8850.9190.955
    941.5521.6041.6561170.8650.8990.934
    951.5111.5611.6121180.8450.8790.913
    961.471.5191.571190.8270.8590.893
    971.4311.4791.5291200.8080.840.874
    981.3931.441.4891210.7910.8220.855
    991.3561.4021.451220.7740.8050.837
    1001.321.3661.4131230.7570.7880.819
    1011.2861.3311.3771240.7410.7710.802
    1021.2531.2971.3421250.7260.7560.786
    1031.221.2641.308
    1041.1891.2321.275
    1051.1591.2011.244
    1061.131.1711.213
    1071.1011.1421.183
    1081.0741.1141.154
    1091.0481.0861.126
    1101.0221.061.099

    Ordering Information


    Part NumberDescription@25MOQ
    CWFM0153FB1-202M113XPVC Overmolded Cap Φ5.3*17mm Length 2 meterS15K Ω1000
    CWFM0153FB1-322M113XPVC Overmolded Cap Φ5.3*17mm Length 3.2 meterS15K Ω1000
    CWFM0153FB1-502M113XPVC Overmolded Cap Φ5.3*17mm Length 5 meterS15K Ω1000

    * For quantities less than Minimum Order Quantity - contact us.
