6.300.10 High Breaking Capacity 6x32mm Fast Acting Ceramic Tube Fuses F10A 250V 300V AC DC

Description

Fast Acting, high breaking capacity under 250Vac
6x32mm physical size
Special Engineering Material tube, Silver plated copper cap construction
Designed to UL 248-1
Lead free and Halogen free material

Available in cartridge and axial lead form and with various lead forming dimensions.

Application

• Uninterruptible Power Supplies (UPS)

• Three-Phase Power Supplies

Electrical Characteristcs

Ordering Info

* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25
* Typical Pre-arcing I²t are measured at 10In Current

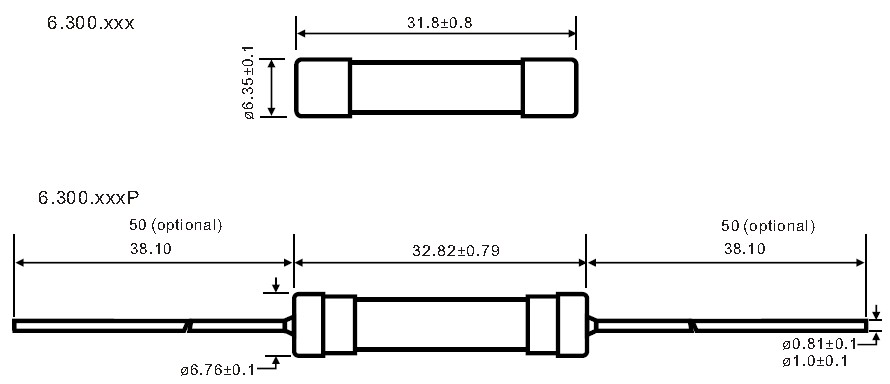

Dimensions(Unit: mm)

Parameters

Datasheet in JPG

Recommended Accessories

Accessory Type Series Description Max Application Voltage Max Application Amperage

Holder 150322 In-Line Fuseholder 500 15

Block 354 Low Profile OMNI-BLOK® Fuse Block 600 30

359 High Current Screw Terminal Fuse Block 30

Clip 122 High Current Traditional PC Board Fuse Clip 1000 30

101 Rivet/Eyelet Type Fuse Clip 1000 15 Notes:

1. Do not use in applications above rating.

2. Please refer to fuseholder data sheet for specific re-rating information. 3. Please contact factory for applications greater than the max voltage and amperage shown.
