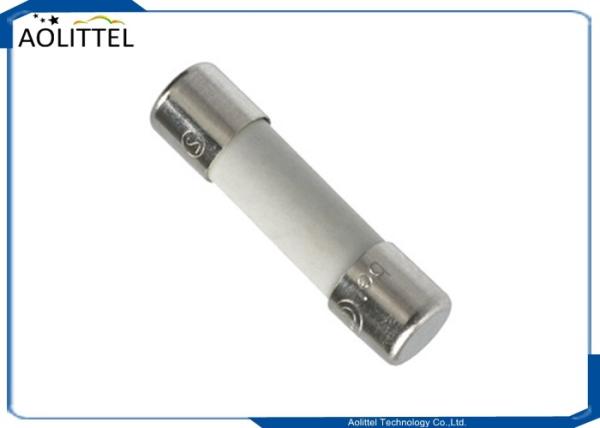

    UL CUL Fast Acting Ceramic Fuse 2.5A 250V 5x20mm Quick Blow Cartridge Tube Fuse 5.250BFC

    Ask Lasest Price
    Brand Name : AOLITTEL
    Model Number : 5.250BFC
    Certification : UL,cUL
    Price : 0.05~0.08 US Dollars Per PCS
    Payment Terms : T/T, Western Union
    Supply Ability : 5000000 PCS/Month
    Delivery Time : 7-10 Workdays
    • Product Details
    • Company Profile

    UL CUL Fast Acting Ceramic Fuse 2.5A 250V 5x20mm Quick Blow Cartridge Tube Fuse 5.250BFC


    UL cUL Fast Acting Ceramic Fuse 2.5A 250V 5x20mm Quick Blow Cartridge Tube Fuse 5.250BFC


    Product description


    Ceramic fuse of timed type of the series 5.250BFC. Its dimensions are 5 x 20 mm and has a current of 2.5 A and a power through a power 250V. Complies with applicable European standards EN 60127-2: 2003 + A1: 2003 + A2: 2010 + EN 50581: 2015 and is made of ceramic. The series 5.250BFC has become a symbol, thanks to its timeless and functional design that, however, updated any type of ambience. This series is a sure bet as it is a series of great creditworthiness, simple lines and that integrates perfectly into any type of project. In addition, 5.250BFC stands out because it is a range in which include the finishes white, ivory (two finishes that adapt to any state) and the metallized in champagne and aluminium (that are per day with the new trends in decoration). Standards:In accordance with UL 248 -1 / -14.


    Agency Approvals


    Voltage RatingAgencyAmpere RangeAgency File Number
    125V/250VUL200mA ~ 10AE340427(JDYX)
    C-UL200mA ~ 10AE340427( JDYX7)
    PSE200mA ~ 10APending
    KTL200mA ~ 10APending

    Specification


    CatalogAmpereVoltageBreakingI2TMelting
    No.RatingRatingCapacityIntegral(A2.S)
    5.250BFC0100A/B100mA250V/125V10000A@125 V AC (200mA~10A); 35A@250V AC (200mA~1A); 100A@250V AC (1.25A~3.5A); 200A@250V AC (4A~10A).0.002
    5.250BFC 0125A/B125mA250V/125V0.003
    5.250 BFC0160A/B160mA250V/125V0.005
    5.250BFC0200A/B200mA250V/125V0.01
    5.250BFC0250A/B250mA250V/125V0.02
    5.250BFC0300A/B300mA250V/125V0.04
    5.250BFC0315A/B315mA250V/125V0.045
    5.250BFC0350A/B350mA250V/125V0.055
    5.250BFC0400A/B400mA250V/125V0.07
    5.250BFC0500A/B500mA250V/125V0.1
    5.250BFC0630A/B630mA250V/125V0.2
    5.250BFC0750A/B750mA250V/125V0.35
    5.250BFC0800A/B800mA250V/125V0.45
    5.250BFC1100A/B1A250V/125V0.9
    5.250BFC1125A/B1.25A250V/125V1.3
    5.250BFC1150A/B1.5A250V/125V1.6
    5.250BFC1160A/B1.6A250V/125V2.5
    5.250BFC1200A/B2A250V/125V5.8
    5.250BFC1250A/B2.5A250V/125V7.6
    5.250BFC1300A/B3A250V/125V8.1
    5.250BFC1315A/B3.15A250V/125V11
    5.250BFC1350A/B3.5A250V/125V19
    5.250BFC1400A/B4A250V/125V28
    5.250BFC1500A/B5A250V/125V40
    5.250BFC1600A/B6A250V/125V50
    5.250BFC1630A/B6.3A250V/125V64
    5.250BFC1700A/B7A250V/125V107
    5.250BFC1800A/B8A250V/125V133
    5.250BFC2100A/B10A250V/125V242
    5.250BFC2150A/B15A250V/125V368
    5.250BFC2200A/B20A250V/125V442
    5.250BFC2250A/B25A250V/125V568
    5.250BFC2300A/B30A250V/125V715

    Dimensions and Structure


    Axial leaded
    Leadless

    NO.Part NameMaterial
    1CapNickel Plated Brass
    2BodyCeramic Tube
    3Fuse elementAlloy
    4leadNickel Plated Brass

    Operating Characteristics


    % of Ampere Rating(In)Blowing Time
    100%* In4 hours Min
    135%* In1 hour Max
    200%* In120 sec Max

    Electrical Characteristics


    1) Lead Pull Strength : 5N for 10±1 Seconds

    2) Lead Thrust Strength : 2N for 10±1 Seconds

    3) Solder ability : Wave : 260℃,≤3s;Soldering Iron: 350±10℃,≤3s.

    4) Soldering Heat Resistance : Wave : 260℃,10s;Soldering Iron: 350℃,5s.

    5) Test Condition : All electrical test is to be conducted with the ambient air at a temperature of 25±5℃.

    6) Load capacity:When the fuse loads through 100% of rated current, should blow within 4 hours.

    7) Interrupting Rating:

    Breaking Capacity:

    10000A at125 V AC (5.250BFC In range 200mA~10A);

    35A at 250V AC (5.250BFC In range 200mA~1A);

    100A at 250V AC 5.250BFC In range 1.25A~3.5A);

    200A at 250V AC (5.250BFC In range 4A~10A).

    8) Rising Temperature Test:When the 100% times of Ampere Rating passes the fuse, after reaching thermal balance , the temperature on the fuse surface rising shall not be higher than 75℃. Note: Rising temperature = the Surface temperature - Ambient temperature.
