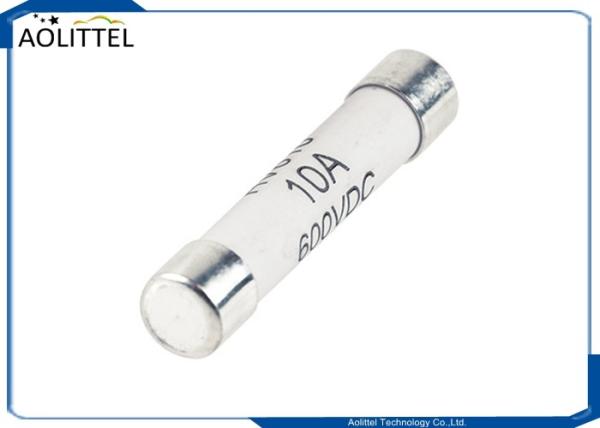

Very Fast Acting Cartridge Type Ceramic Tube Fuse 6x32mm 3AB 300V
500V 600V 660V 1000V 10A For Multimeters MM300
Description
6.600.10 of 6x32mm ferrule high speed fuses are for the protection
of DC common bus, DC drives, power converters/rectifiers and
reduced rated voltage starters
RoHS Directive-compliant
Available with optional axial leads
Features
Fast acting, high breaking capacity under 1000V DC
6x32mm physical size
Special engineering material tube, silver plated copper cap
construction
Designed to UL 248-1
Lead-free and halogen free material
Replacement cartridge fuses for multimeters, 7 x 32 mm, 10 A, 600
V.
Applications
DC common bus
DC drives
Power converters/rectifiers
Reduced voltage starters
General
Replacement fuse for use with Klein Tools' MM300 and MM400
Multimeters.
Provides longer lasting performance and greater safety.
Store as spare fuse so you are always prepared.
Fast-acting ceramic fuse.
Reduces the possibility of internal arc flashes.
Use with additional fuse, Cat. No. 69031 (MM300), or Cat. No. 69033
(MM400).
Dimension (unit:mm)
Specification
| Rated Current | Rated Voltage DC | Breaking Capacity DC |
| 200mA | 300V 500V 600V 660V 1000V | 10KA |
| 250mA |
| 400mA |
| 500mA |
| 600mA |
| 1A |
| 1.25A |
| 2A |
| 2.5A |
| 3A |
| 3.15A |
| 3.5A |
| 4A |
| 5A |
| 6A |
| 6.3A |
| 8A |
| 10A |
| 12A |
| 12.5A |
| 15A |
| 16A |
| 20A |
| 25A |
| 30A |
| 35A |
| 40A |
* DC Cold Resistance are measured at <10% of rated current in
ambient temperature of 25
* Typical Pre-arcing I²t are measured at 10In Current
Application Example Display Of Test & Measurement Replacement Parts
We supplying various fuses
The Benefits of a Ceramic Fuse
The breaking capacity of a ceramic fuse is important because it
defines the amount of current that can be stopped by the fuse. The
capacity of a ceramic fuse is higher than any other fuse. This
means that ceramic fuses can be used in circuits that have a higher
current. Fuses made of ceramic also offer protection against
overheating.
The Cons of a Ceramic Fuse
Ceramic is very delicate and can easily be smashed. This is a
disadvantage as you must be very careful when handling your fuse.
Ceramic Fuse
Opaque and metal tipped, a ceramic or sand fuse is fairly common
for many household items, from extension cords to some ceiling
fans. A ceramic fuse is built to withstand high temperatures. The
more thermally stable fuse is typically filled with sand in order
to prevent the conductive film from forming. The film is formed
when a short circuit melts the fuse element, causing a deposit to
be seen on the inside of the fuse barrel as a film.
