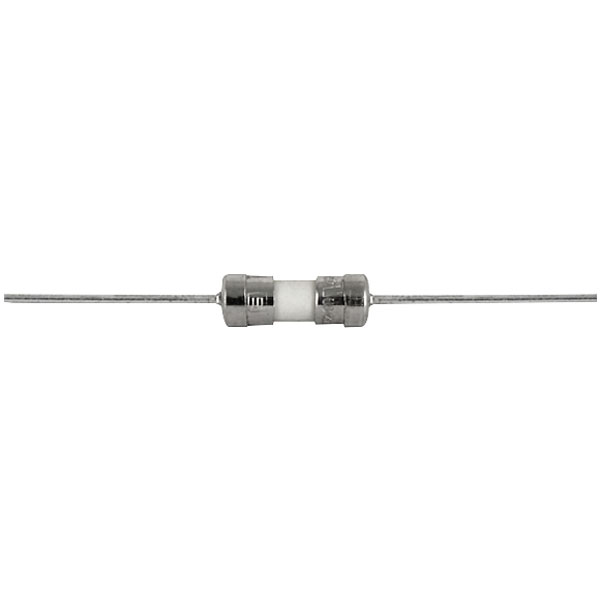

Quick Response Axial Leaded Non-Resettable One Time Ceramic Tube Fuse 2.5A 250VAC With 3.6x10mm Fast Blow Single Cap

Description

Aolittel HFP fast-acting 3.6 x 10mm axial-leaded fuse constructed with ceramic tube and one-piece nickel-plated endcaps featuring tinned copper axial leads. Small 3.6 x 10mm size offers more design flexibility by doing away with conventional over-capping while providing higher I2t values.

___________________________________________________________ Download________

Operating Characteristics

Certifications

Specification

Dimension (mm)

Features

• Single cap, axial leaded, fast-acting fuse
• 3.6 x 10mm physical size
• Ceramic tube, nickel-plated brass endcap construction
• Tinned copper axial leads
• RoHS complaint, lead-free and halogen free
• Designed to UL/CSA 248 Standard
• Fast Acting, Ceramic body fuse in a compact package
• Available in ratings of 0.10 to 15 Amperes

Average Time Current Curves

TIME IN SECONDS

CURRENT IN AMPERES

Temperature Rerating Curve

Installation Recommendations

A: Propose installation way as following picture.

a.	Horizontal installation
b.	Vertical installation
Recommended Soldering Parameters	Wave Parameters: Solder Pot Temperature: 260℃ Max Solder Dwell Time: 2~5s Hand-Solder Parameters: Solder Iron Temperature: 350±5℃ Heating Time: 5s Max

Why should the DCR of a fuse be measured at a load of no more than 10% and an ambient temperature of 25°C ?

The internal resistance of a fuse is an index reflecting its consumed power in the circuit. The higher the resistance, the more power consumed. For fuses, two parameters can be used to check this index: voltage drop or cold resistance.

Voltage drop: the voltage drop reading after the fusing element reaches thermal balance under rated current. To measure it, apply rated current to the fuse and wait until the reading is stable. It may take a few minutes. It is a little inconvenient and time-consuming.

Cold resistance: the reading of cold resistance basically under no load condition, easy and fast.

Therefore, the cold resistance method is always preferred for fuse check. The load of less than or equal to 10% means basically no load or heating condition, so there will be no thermal balance process, while the ambient temperature itself has a certain effect on fuse performance. All performance indexes of a fuse are parameters in ordinary atmospheric condition, i.e. 25°C. The cold resistance of a fuse, if not measured under the above-mentioned conditions, may not be accurate.
